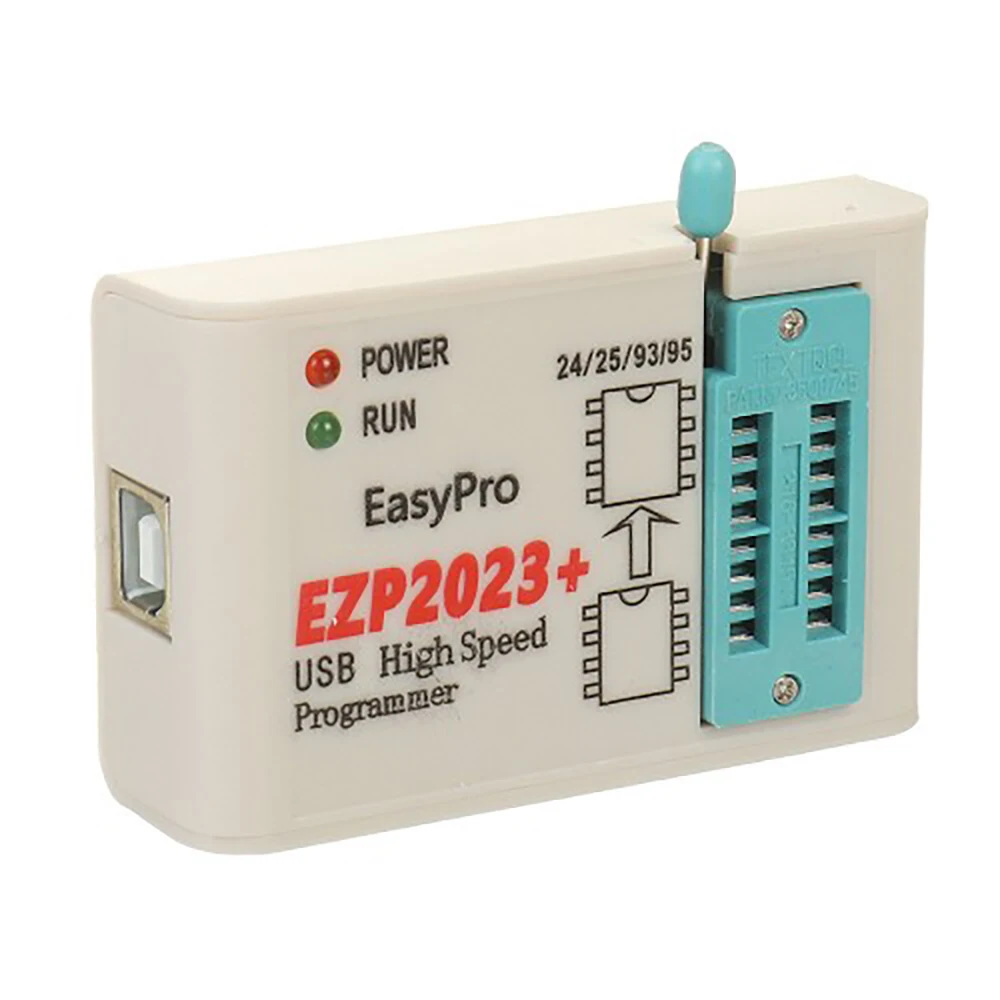

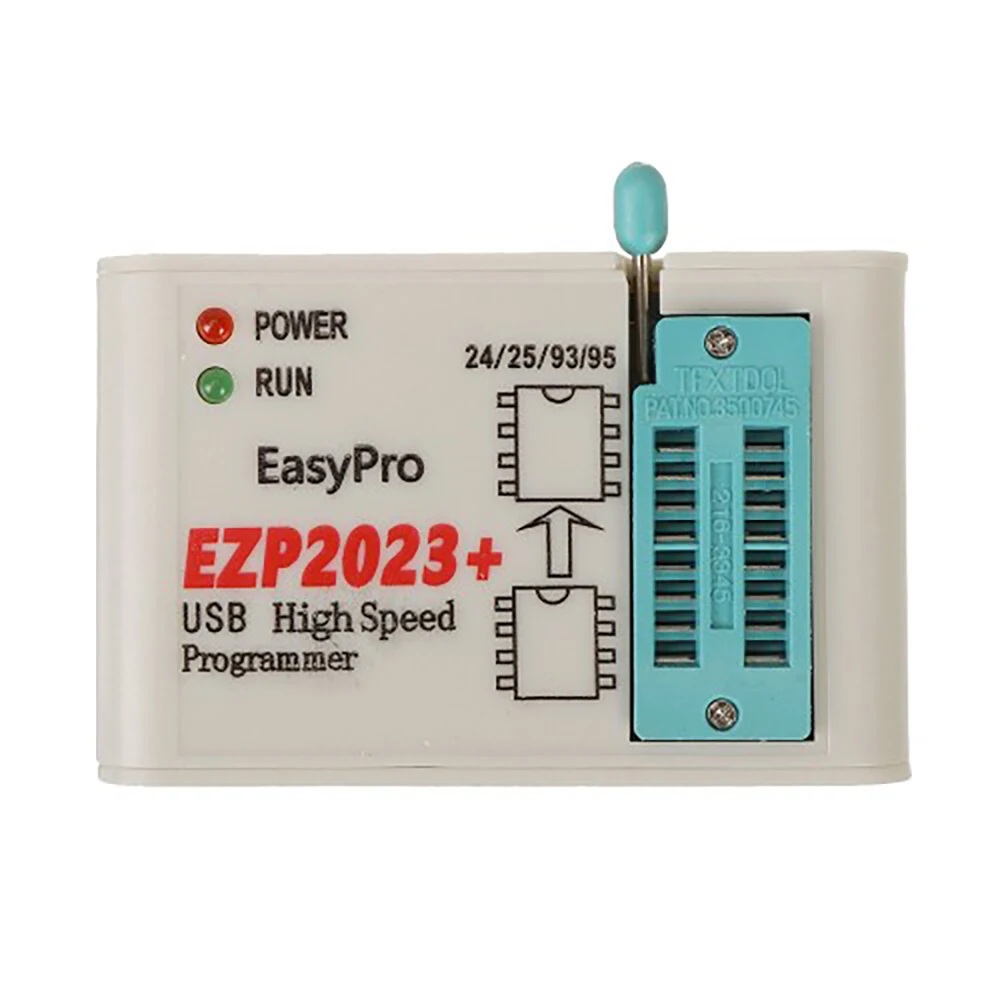

Le EZP2023+ est un programmeur USB haute vitesse conçu pour lire, écrire, cloner ou restaurer les puces BIOS, EEPROM et SPI FLASH utilisées dans une large gamme d’appareils : ordinateurs, routeurs, téléviseurs, disques durs, écrans, cartes mères, etc.
Avec 12 adaptateurs inclus, ce kit complet est l’outil parfait pour les techniciens, ateliers de réparation, usines de production, et les passionnés de R&D en électronique.
⚙️ Caractéristiques principales
-
⚡ Ultra rapide : Lecture EN25T80 en 3 s, écriture en 9 s – le plus rapide du marché
-
🔍 Détection automatique de la puce et de son positionnement
-
🔧 Sélection automatique de la tension d’alimentation
-
💾 Support étendu : 24 / 25 / 93 / 95 EEPROM & FLASH SPI
-
🧠 Fonction de copie hors ligne idéale pour la production en série
-
🔄 Mise à jour logicielle et firmware possible
-
🔌 Interface USB 2.0, 12 Mbps
-

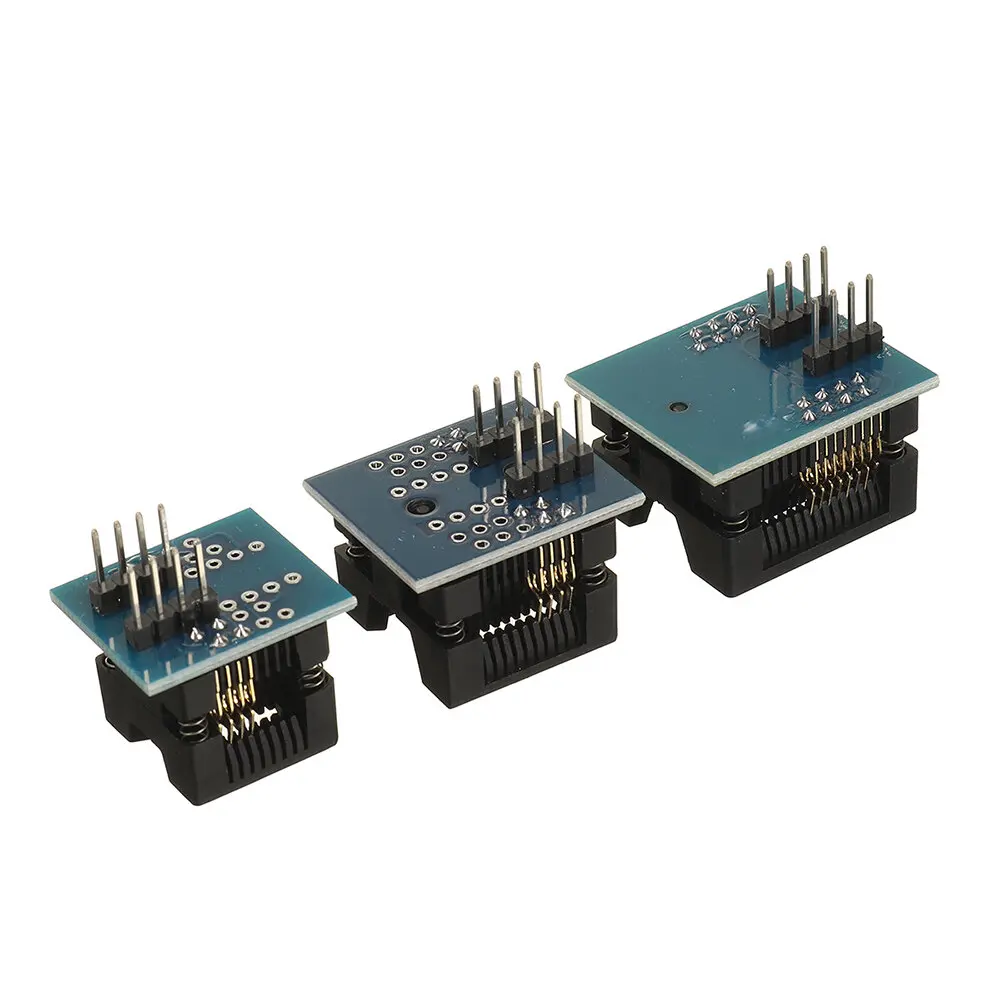

📦 Fourni avec 12 adaptateurs pour SOP, DIP, etc.
-
📏 Taille compacte, facile à transporter
-
⚖️ Poids : 115 g
🧪 Domaines d’application
-
Réparation de BIOS de PC / TV / routeur / HDD / lecteur DVD
-
Programmation de puces en usine ou laboratoire de test
-
Maintenance de circuits intégrés contenant des firmwares spécifiques
-
Mise à jour de firmwares embarqués

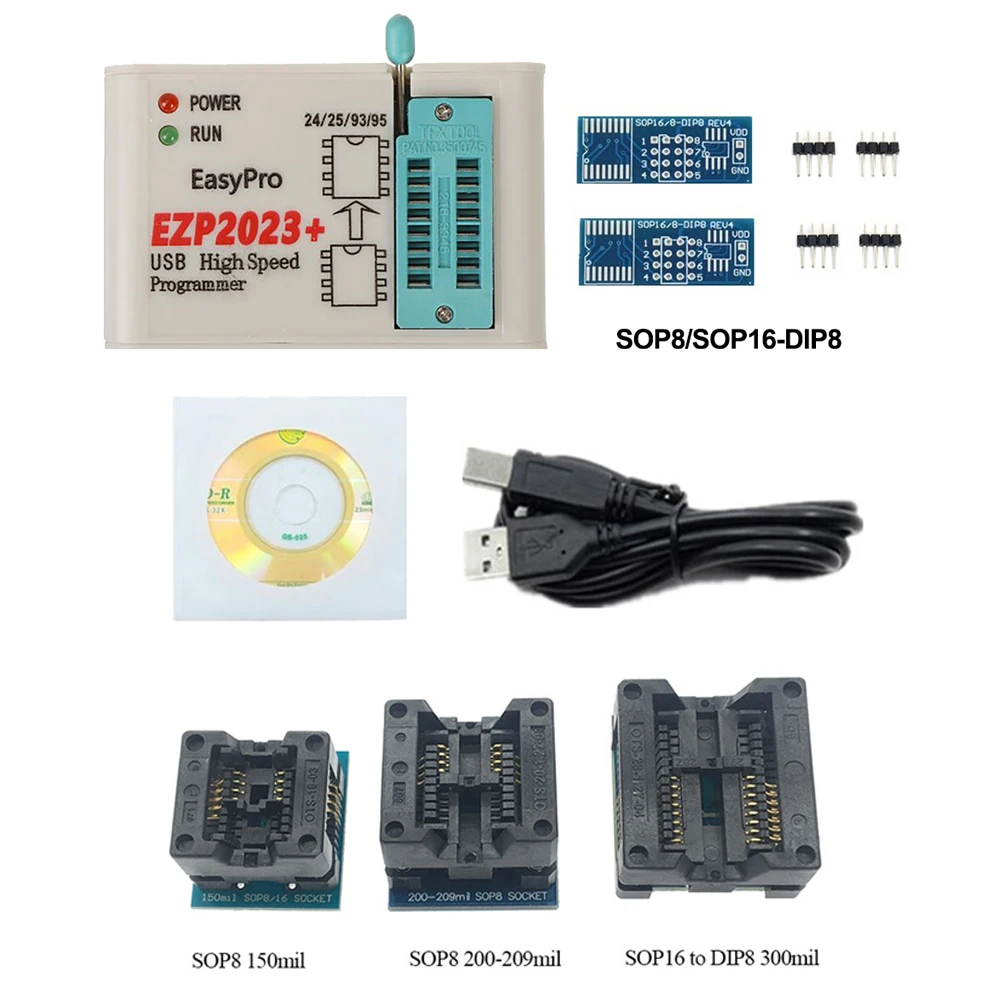

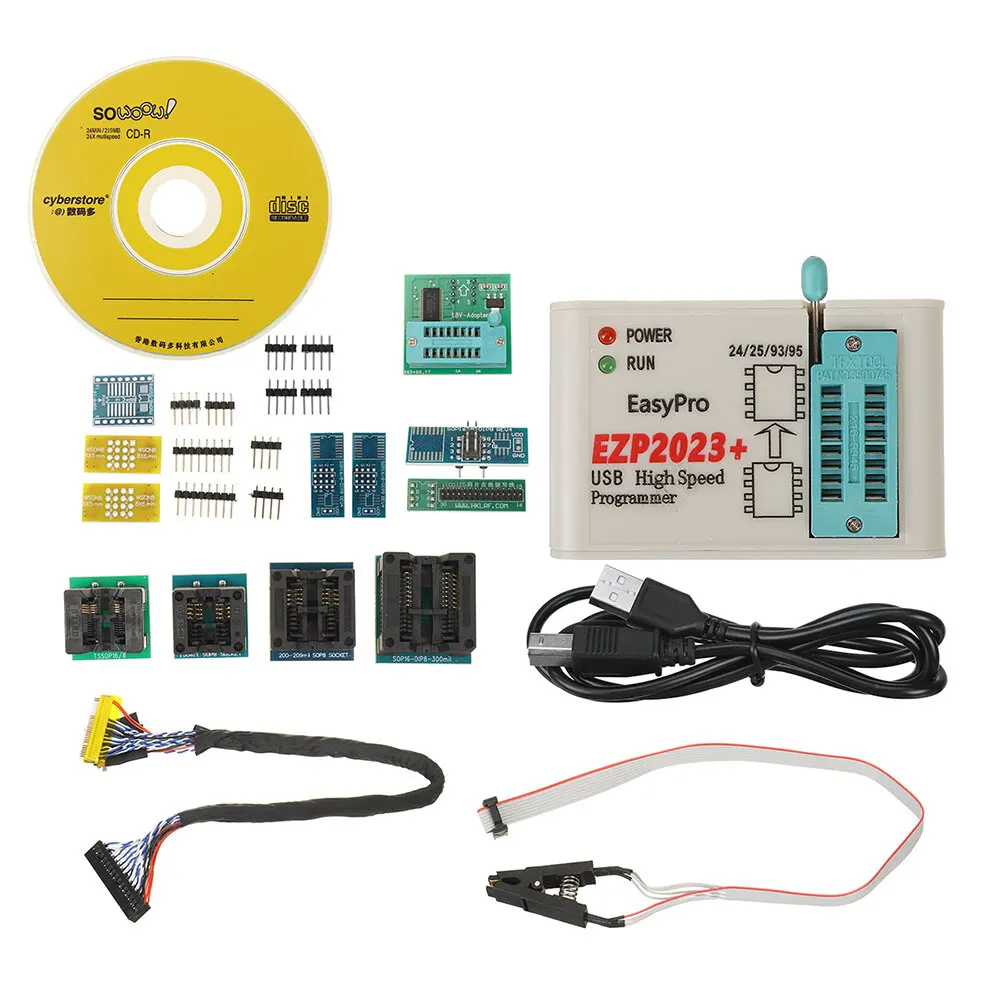

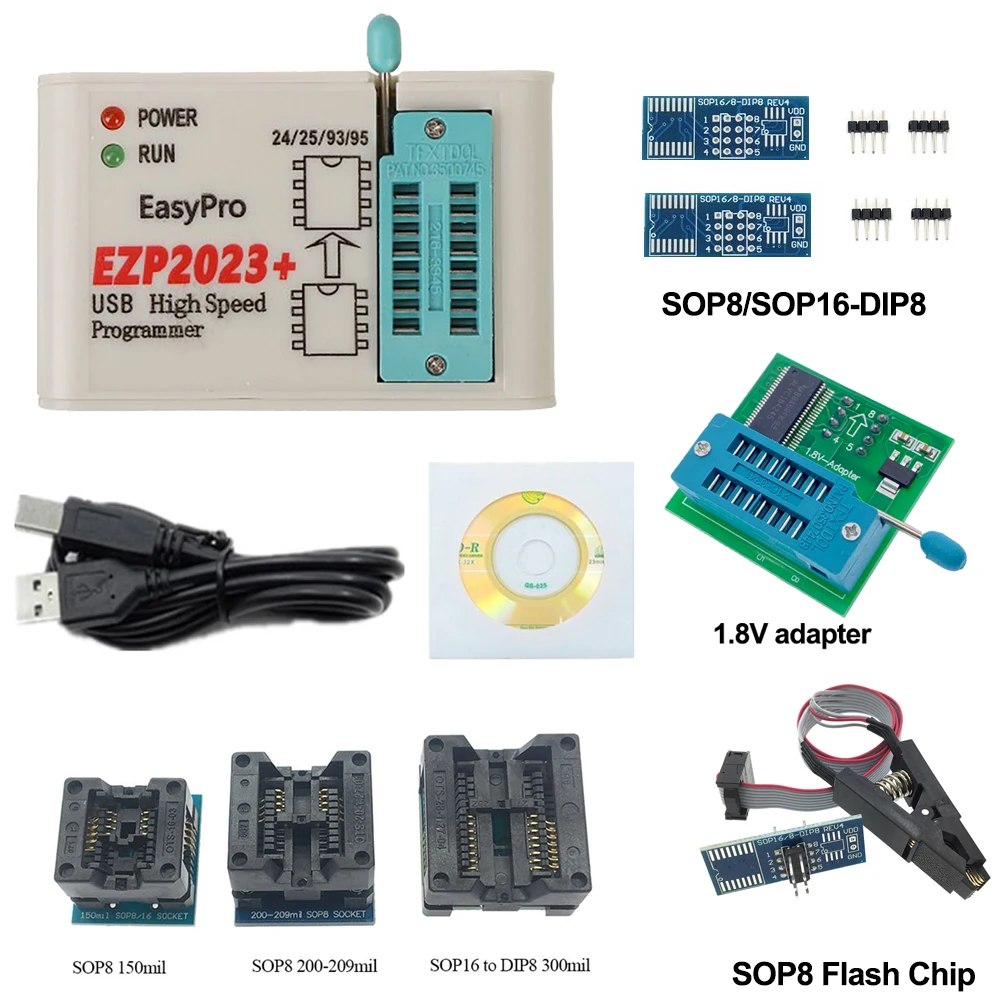

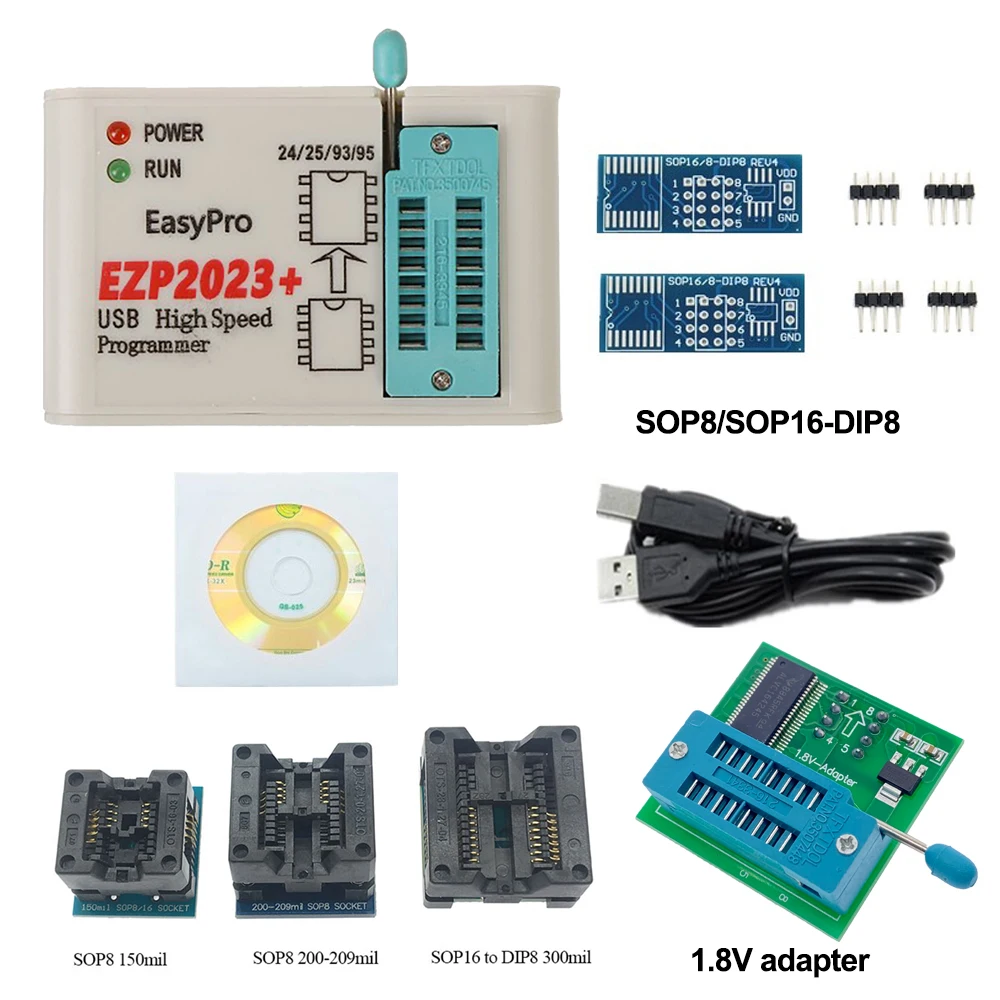

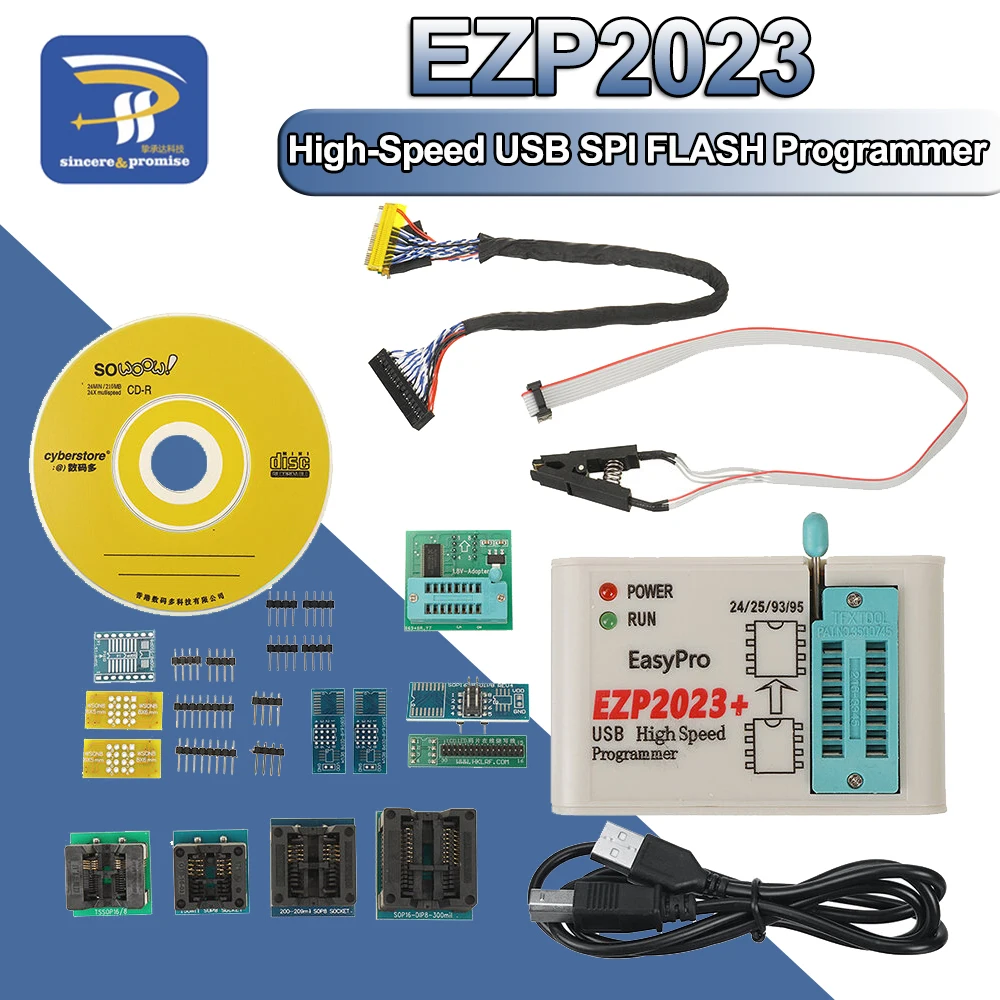

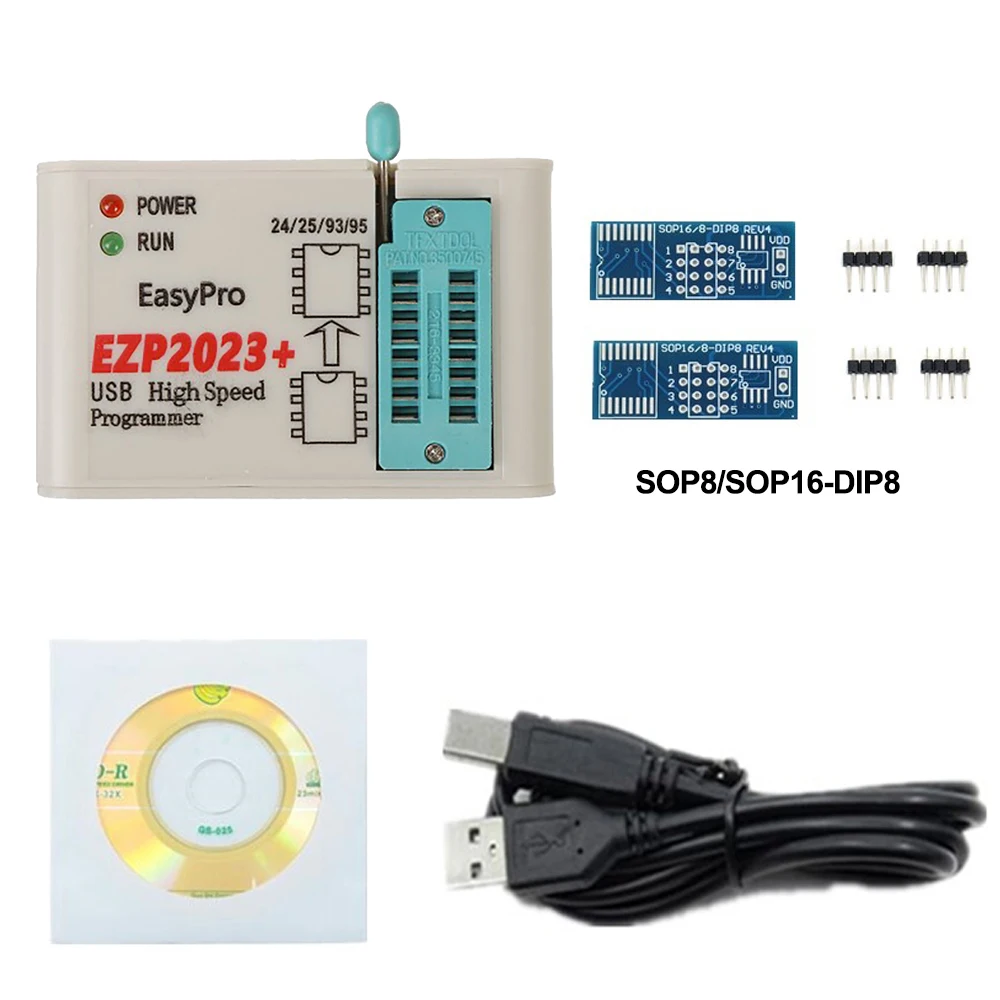

🧰 Contenu du pack
-
✅ 1x programmeur EZP2023+ USB
-
✅ 12x adaptateurs compatibles SOP / DIP
-
✅ Câble USB
-
✅ Logiciel de programmation (téléchargement)
-
✅ Manuel d’utilisation
🧠 Liste non exhaustive des puces supportées
-
SPI FLASH 25 : Winbond, MXIC, EON, SST, Atmel, etc.
-
EEPROM 24Cxx : Atmel, Microchip, Catalyst, ST, etc.
-
EEPROM 93Cxx : ATMEL, Holtek, Xicor, etc.
-
EEPROM 25Cxx : ST, Microchip, Catalyst, etc.
Voir fiche technique complète pour la liste exhaustive des puces prises en charge.
Liste des modèles de puces pris en charge :
Prend en charge les puces de la série 24, 25, 93 de presque tous les fabricants du marché!
************************************** 25 SPI FLASH*********************************** *******
AMÉTIQUE :A25L05P, A25L512, A25L010, A25L10P, A25L020, A25L20P, A25L040, A25L40P, A25L080, A25L80P, A25L016, A25L16P, A25L032
ATMEL@ :AT25F512, AT25F512A, AT25F512B, AT25F1024, AT25F1024A, AT25FS010, AT25DF021, AT25F2048, AT25DF041A, AT25F4096, AT25FS040, AT26F004, AT26DF081A, AT25DF161, AT26DF321, AT26DF321, AT26DF321, AT25DF321, AT26DF161A, AT25DF321
EON :EN25F05, EN25LF05, EN25P05, EN25D10, EN25F10, EN25LF10, EN25P10, EN25D20, EN25F20, EN25LF20, EN25D40, EN25F40, EN25LF40, EN25D80, EN25F80, EN25Q80, EN25T80, EN25B16, EN25B16, EN25B16, EN25B16, EN25B16 EN25B32T, EN25F32, EN25P32, EN25Q32, EN25B64, EN25B64T, EN25F
ES :ES25P10, ES25P20, ES25M40, ES25M40A, ES25P40, ES25M80, ES25M80A, ES25P80, ES25M16, ES25M16A, ES25P16, ES25P32
ESMT :F25L004A, F25L04UA, F25L008A, F25L08PA, F25L016A, F25L16PA, F25L32PA, F25L32QA
MXIC :MX25L512, MX25V512, MX25L1005, MX25L2005, MX25L4005A, MX25V4005, MX25L8005, MX25V8005, MX25L1605D, MX25L1635D, MX25L3205D, MX25L3225D, MX25D MXL3235D, 640
NEXFLASH :NX25P10, NX25P20, NX25P40, NX25P80, NX25P16, NX25P32
PMC :PM25LV512A, PM25LV010A, PM25LV020, PM25LV040, PM25LV080B, PM25LV016B
SAIFUN :SA25F005, SA25F010, SA25F020, SA25F040, SA25F080, SA25F160, SA25F320
SPANSION :S25FL004A, S25FL008A, S25FL016A, S25FL032A, S25FL064A
SST :SST25VF512, SST25VF512A, SST25VF010, SST25VF010A, SST25VF020, SST25VF020A, SST25VF040, SST25VF040A, SST25VF040B, SST25VF080B, SST25VF016B, SST25VF032B, SST25VF064
ST :M25P05A, M25P10A, M25PE10, M25P20, M25PE20, M25P40, M25P80, M25PE80, M25PX80, M25P16, M25PE16, M25PX16, M25P32, M25PX32, M25P64, M25PX64, M25P128
WINBOND :W25P10, W25X10, W25X10A, W25X10AL, W25X10L, W25P20, W25X20, W25X20A, W25X20AL, W25X20L, W25P40, W25X40A, W25X40AL, W25X40L, W25P80, W80X25, W25P80 W25X64
******************************************24 EEPROM*********************************** ******
ATMEL@ :AT24C01, AT24C01A, AT24C01B, AT24C02, AT24C02A, AT24C02B, AT24C04, AT24C04A, AT24C04B, AT24C08, AT24C08A, AT24C08B, AT24C16A, AT24C24B, AT24C64, AT24C24B, AT24C128, AT24C24A AT24C256, AT24C256A, AT24C256A, AT24C256B
CATALYST@ :CAT24C01, CAT24WC01, CAT24C02, CAT24WC02, CAT24C04, CAT24WC04, CAT24C08, CAT24WC08, CAT24C16, CAT24WC16, CAT24C32, CAT24WC32, CAT24C64, CAT24WC64, CAT24C128, CAT24WC, 512, CAT24WC256, CAT24WC128
COMMUN :24C00 3V, 24C00 5V, 24C01 3V, 24C01 5V, 24C02 3V, 24C02 5V, 24C04 3V, 24C04 5V, 24C08 5V, 24C16 3V, 24C16 5V, 24C32 3V, 24C32 5V, 24C64 3V, 24C64 5V 24C128 3V, 24C128 5V, 24C256 3V, 24C256 5V, 24C256 5V, 24C
ENFANTS :FM24C01L, FM24C02L, FM24C03L, FM24C04L, FM24C05L, FM24C08L, FM24C09L, FM24C16L, FM24C17L, FM24C32L, FM24C64L, FM24C128L, FM24C512L, FM24C512L, FM24C512L,
HOLTEK :HT24C01, HT24LC01, HT24C02, HT24LC02, HT24C04, HT24LC04, HT24C08, HT24LC08, HT24C16, HT24LC16, HT24C32, HT24LC32, HT24C64, HT24LC64, HT24LC128, HT24C256, HT24LC128, HT24LC128
ISSI :IS24C01, IS24C02, IS24C04, IS24C08, IS24C16, IS24C32, IS24C64, IS24C128, IS24C256, IS24C512, IS24C1024
MICROCHIP :24AA00, 24C00, 24LC00, 24AA01, 24AA014, 24C01C, 24LC014, 24LC01B, 24AA02, 24LC02B, 24AA024, 24AA025, 24AA04, 24C02C, 24LC024, 24LC025, 24LC04B, 24AA08, 24LC08B, 24AA16, 24AA64, 24LC32, 24AA64, 24LC64, 24AA128, 24FC128, 24AA256, 24FC256, 24FC256, 24HC256, 24HC256,
NSC :NSC24C02, NSC24C02L, NSC24C64
RAMTRON :FM24C04A, FM24CL04, FM24C16A, FM24CL16, FM24C64, FM24CL64, FM24C256, FM24CL256, FM24C512
ROHM :BR24C01, BR24L01, BR24C02, BR24L02, BR24C04, BR24L04, BR24C08, BR24L08, BR24C16, BR24L16, BR24C32, BR24L32, BR24C64, BR24L64
ST :ST24C01, ST24C02, ST24C04, ST24C08, ST24C16, ST24C32, ST24C64
XICRO :X24C01, X24C02, X24C04, X24C08, X24C16
****************************************** ***93 EEPROM******************************* ******
AKM :AK93C45AV, AK93C55AV, AK93C65AV, AK93C75AV
ATC :ATC93C46, ATC93LC46 (16 bits), ATC93LC46 (16 bits)-SOP8, ATC93LC46(8 bits), ATC93LC46(8 bits)-SOP8, ATC93C56, ATC93LC56(16 bits), ATC93LC56(16 bits)-SOP8, ATC93LC56(8 bits), ATC93LC56(8 bits)-SOP8, ATC93C66, ATC93LC66(16 bits), ATC93LC66(16 bits)-SOP8, ATC93LC
ATMEL@ :AT93C46 (16 bits), AT93C46 (16 bits)-SOP8, AT93C46(8 bits), AT93C46(8 bits)-SOP8, AT93C46A, AT93C56(16 bits), AT93C56(16 bits)-SOP8, AT93C56(8 bits), AT93C56(8 bits)-SOP8, AT93C57(16 bits), AT93C57(16 bits)-SOP8, AT93C57(8 bits), AT93C57(8 bits)-SOP8, AT93C66″, AT93C
CATALYST@ :CAT93C46 (16 bits), CAT93C46(8 bits), CAT93C46A, CAT93C46I, CAT93C56(16 bits), CAT93C56(8 bits), CAT93C56A, CAT93C57(16 bits), CAT93C57(16 bits)-SOP8, CAT93C66(16 bits), CAT93C66(8 bits), CAT93C66A, CAT93C66(16 bits), CAT93C86(16 bits), CAT93C86(8 bits)
COMMUN :93C46 (16 bits), 93C46 (8 bits), 93C56 (16 bits), 93C56 (8 bits), 93C66 (16 bits), 93C66 (8 bits), 93C86 (16 bits), 93C86 (8 bits)
EXEL :XL93C06, XL93C46, XL93CS46, XL93LC46, XL93C56, XL93LC56, XL93C66, XL93LC66
ENFANTS :FM93C06AM8(16 bits), FM93C06AM8(8 bits), FM93C06M8, FM93C06N, FM93C46AM8(16 bits), FM93C46AM8(8 bits), FM93C46AN(16 bits), FM93C46AN(8 bits), FM93C56AN(16 bits), FM93C56AN(8 bits), FM93C66AM8(16 bits), FM93C66AM8(16 bits), FM93C66AM8(8 bits), FM93C46AN(358
HOLTEK :HT93LC46A (16 bits), HT93LC46A (8 bits), HT93LC56A (16 bits), HT93LC56A (8 bits), HT93LC66A (16 bits), HT93LC66A (8 bits)
TIC :TIC93C46 (16 bits), TIC93C46 (8 bits), TIC93C56 (16 bits), TIC93C56 (8 bits), TIC93C66 (16 bits), TIC93C66 (8 bits)
ISSI :IS93C46 (16 bits), IS93C56 (16 bits), IS93C66 (16 bits)
MICROCHIP :93C06(16 bits), 93C06(16 bits) -SOP8, 2021B (LC8), 93868,66B (LC68, 93AA46(8 bits)-SOP8, 93C46(16 bits)-SOP8, 93C46A, 93C46B, 93LC46(16 bits), 93LC46(16 bits)-SOP8, 93LC46(8 bits)-SOP8, 93LC46(8 bits)-SOP8, 93LC46A, 93LC46B, 93LC46B-SOP8, 93AA56 (SOP56,
NSC : NSC93C06, NSC93C06-SOP8, NSC93CS06, NSC93C46, NSC93CS46, NSC93C56, NSC93CS56, NSC93S56, NSC93C66, NSC93CS66, NSC93C86
ROHM :BR93LC46, BR93LC46RF, BR93LC56, BR93LC56RF, BR93LC66, BR93LC66RF
ST :ST93C06, M93S46, M93S46-SOP8, M93S46-T8, M93S46R, M93S46R-SOP8, M93S46W, M93S46W-SOP8, ST93C46, M93S56, M93S56-SOP8, M93S56R, M93S56R-SOP8, M93S56W, M93S56W-SOP8, ST93C56, M93S66-SOP8, M93S66-SOP8, M93
*******************************************25 EEPROM*********************************** ******
ATMEL@ :AT25010, AT25020, AT25040, AT25080, AT25160, AT25320, AT25640, AT25128, AT256, AT25512
CATALYST@ :CAT25C01, CAT25C01P, CAT25C01S, CAT25C01U, CAT25C02P, CAT25C02S, CAT25C02U, CAT25C03P, CAT25C03S, CAT25C03U, CAT25C04P, CAT25C04S, CAT25C04U, CAT25C05S, CAT25C0P, CAT25C08S, CAT25C08U, CAT25C09P, CAT25C025P, CAT25CS, CAT25CS, CAT
COMMUN : 25010, 25020, 25040, 25080, 25160, 25320, 25640, 25128, 25256, 25512
MICROCHIP :25AA040, 25C040, 25LC040, 25AA080, 25C080, 25LC080, 25AA160, 25C160, 25LC160, 25AA320, 25C320, 25AA640, 25C640, 25LC640
RAMTRON :FM25C160, FM25640, FM25CL64
ST :ST25C01, ST25W01, ST25C02, ST25W02, ST25C04, ST25W04, ST25C08, ST25W08, ST25C16, ST25W16
TI :TI2532, TI2532A, TI2564
XICRO :XC25010, XC25020, XC25040, XC25080, XC25160, XC25320, XC25640, XC25128, XC25256, XC25512
